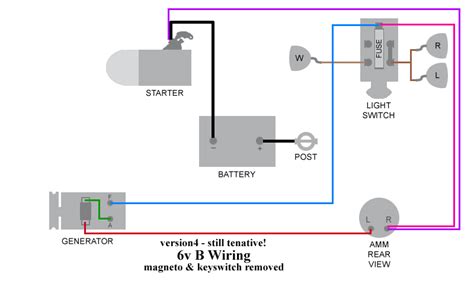

6 Volt Positive Ground Wiring Diagram | autocardesign6 Volt Positive Ground Wiring Diagram– wiring diagram is a simplified conventional pictorial representation of an electrical circuit.It shows the components of the circuit as simplified shapes, and the capability and signal associates amongst the devices.
Pertronix Positive Ground Wiring Pertronix Igniter Wiring For Positive Ground Cars. The wiring diagram shown below was obtained from Pertronix to show the proper hookup for a Pertronix Igniter in a car wired for positive ground, or earth if you prefer. It goes without saying that this is valid only for cars without ballast resistors, viz., our T-series cars.
How Does a Positive Ground System Work? The evolution of the less functional positive ground system is easily explained, as before the invention of PVC-insulated plastic wiring in the 1960s, live wires were covered with cloth insulation that performed poorly in the damp conditions found in the U.K. and other European nations.
How to Read Car Wiring Diagrams for Beginners ...On a car, the ground is always the body of the vehicle. In fact, I should say that the ground is the negative post of the battery but since a wire goes straight from the post to the body of the car, every metal part touching the body is also considered as a ground. ... Learning to read car wiring diagrams is an awesome skill to add to your auto ...
How To Read Car Wiring Diagrams (Short Beginners Version ...A wiring circuit is so called because the wiring must make a complete circle, any break in this circle, causes a fault. Power leaves the positive side of the car battery through the power cables and is always actively looking for the shortest possible return path to the negative side of the car battery. Basic wiring circuit diagram
Positive Ground Cars Most cars switched from 6 volt positive ground to 12 volt negative ground together. An exception to this was the 1955 Packard, switching from 6v to 12v but not switching to negative ground. As stated, polarity makes no difference at all to a car. Red is still positive, and black is still negative. Several minor differences include the coil ...
Wiring Diagrams for Diy Car Repairs Standard Auto Wire Diagrams PDF Automotive Wiring Diagrams. The standard labeling system will use the first letter to indicate the base color, and the second letter to indicate the stripe color. An example would be the letters OB. This represents an orange colored wire with a black tracer stripe. RB is red with a black tracer. Wire repair ...
Old Car ElectricalBefore tackling any old car electrical problems, have a factory service manual for your make and model car and study the wiring diagram. If the diagram is too small to read clearly, many companies offer large, laminated posters. ... Positive Ground Cars. The electricity in a car travels in a circle. Power leaves the battery from one terminal ...
Free Wiring Diagrams Premium Color Wiring Diagrams Get premium wiring diagrams that are available for your vehicle that are accessible Online right now, Purchase Full Set of complete wiring diagrams so you can have full Online access to everything you need including premium wiring diagrams, fuse and component locations, repair information, factory recall information and even TSB's (Technical Service Bulletins).
How to get a car wiring diagram — Ricks Free Auto Repair ...Car Wiring diagrams are grouped by system. Let’s take a look a screen shot from a professional shop manual like Mitchel’s OnDemand. I’ve entered a 2000 Toyota Camry as the year, make and model we’re working on. Then I selected the ELECTRICAL category and clicked on the Wiring Diagrams sub-category. Now I can choose the car wiring ...
