Ceiling Fan Wiring Schematics & Diagrams Ceiling fan wiring diagram 2: Black speed switch with only three terminals connected, two wire capacitor . Speed Switch connection table: 0 (OFF) : No connection 1 (Fast): 2 to 1 2 (Med) : 2 to 1 and 3 3 (Slow): 2 to 3 Do not use an electronic speed control on this type of fan.
Ceiling Fan Speed Control Switch Wiring Diagram ...In the above ceiling fan speed control wiring diagram i shown the main winding / running winding and i connect run wire of motor to the speed control switch and you can see it in above diagram that connection of run wire of motor in switch L point and and 1 and 2 for capacitor.
Wiring Diagrams for a Ceiling Fan and Light Kit This wiring diagram illustrates the connections for a ceiling fan and light with two switches, a speed controller for the fan and a dimmer for the lights. The source is at the switches and the input of each is spliced to the black source wire with a wire nut. From the switches, 3-wire cable runs to the ceiling outlet box.
Ceiling Fan Wiring Diagrams and ConnectionsVariations for Ceiling Fan Wiring. Electrical Question: I am replacing two outdoor ceiling fans. The old ones have a white, black, red, and green wire. The power box has the same thing. The new fans only have white, black, and green in them.

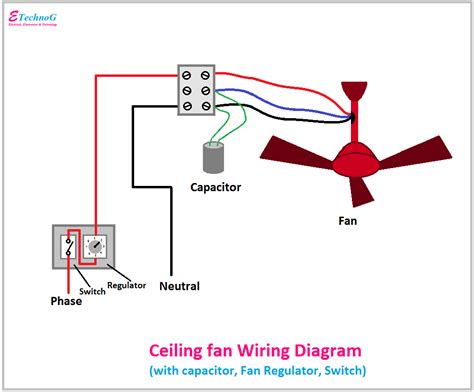

Ceiling fan wiring diagram This is a simple illustrated circuit diagram of ceiling fan.To be noted that the wiring diagram is for AC 220V single phase line with single phase ceiling fan motor. Here a simple SPST switch is used to supply power or not to the fan motor and a Regulator is used to controlling the fan speed.
Ceiling Fan Wiring Diagram #2 Ceiling Fan Wiring Diagrams Wiring Ceiling Fan Switches Wiring Ceiling Fan Remote Controls ... fan however you will need to used the pull chain switches on the ceiling fan to control the levels of light and the speed of the ceiling fan motor unless you choose to have the option of remote control capabilities which is the most convenient way to ...
What is the Role of Capacitor in a Ceiling Fan? Electrical ...Ceiling Fan Motor Circuit Diagram. Generally, the ceiling fan motors are split phase single phase AC motors. There are two windings inside the ceiling fan known as Starting Winding and Running Winding.Starting Winding is also known as Auxiliary Winding while Running Windings is known as Main Winding.
Harbor Breeze Wiring Diagrams Connect it to the black wire which is hanging down from the ceiling. If the fan has two switches, connect the black wire from the fan to the black, blue and red wire in the ceiling. If there is a metal box in the ceiling, then you need to connect the ground wire to that also. Make sure grounds are used.
How to Wire a Ceiling Fan Connect black fan wire to the black ceiling wire. Connect the blue wire to the red wire. Connect white wires together. Connect green/copper wires. In the switch box: Split the incoming hot wire into a "Y" and connect it to a terminal on each switch. Connect the black wire to the screw located in swith #1. Connect the red wire to the screw in switch #2.
Hunter Ceiling Fan 3 Speed Capacitor Wiring DiagramCeiling fan wiring diagram 1: Black speed switch, three wire capacitor. I need a wire diagram for a 3 speed 3 wire switch and diagram of CAPACITOR for a model TFP ceiling fan my guess is the CAPACITOR is connected wrong and that is why I am only getting 2 speeds Submitted: 5 years ago.Ceiling Fan Speed Switch RepairHunter Fan Speed Control ...
