Hunter Ceiling Fan Wiring

The main trick to knowing wiring colors, whether it be for a ceiling fan or other, is being aware of the universal wire color structure. If you know that the green will be for ground all the time, red for positive, black for negative, blue for remote wire etc. then these wiring colors will always be the same and make life easier.

Hunter Ceiling Fan Wiring Schematic | Free Wiring Diagram

December 31, 2018 by Larry A. Wellborn Variety of hunter ceiling fan wiring schematic. A wiring diagram is a streamlined traditional pictorial representation of an electric circuit. It shows the parts of the circuit as simplified shapes, as well as the power and signal links between the gadgets.

Wiring Your Fan On a Single or Dual Wall Switch – Hunter Fan

Connect a black wire from the ceiling to the black wire from the fan. Connect the second black or red wire coming from the ceiling to the blue wire coming from the fan. Integrated Control. Connect the three grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling fan-rated electrical box, the downrod attached to your fan, and the ceiling bracket.

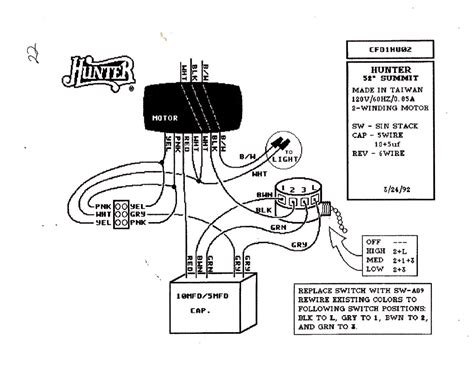

Hunter Ceiling Fan 3 Speed Capacitor Wiring Diagram

Hunter Ceiling Fan 3 Speed Capacitor Wiring Diagram We bought a DUAL capacitor 3 speed fan switch, replaced it wire for I was not able to find a general wiring diagram for these things so I'm. Does anyone have a wiring diagram for recent Hunter ceiling fans including the sell the entire switch housing containing the switch, capacitor, etc. for ...

Ceiling Fan Wiring Schematics & Diagrams

A question we often get asked is, where can I find a wiring schematic or wiring diagram for my ceiling fan? Whether it be a Hampton Bay, Hunter or another brand of ceiling fan, many fans have the same setup in terms of installation. With the below wiring diagrams, you can install 90% of ceiling fans, no matter the make or model.

Wiring Your Ceiling Fan – Hunter Fan

Hunter Fan; Installation & Wiring; Wiring Your Ceiling Fan; Wiring Your Ceiling Fan Follow New articles New articles and comments. Wiring Your Fan On a Single or Dual Wall Switch; Ceiling Fan Rated Electrical Box: What it is and Why You Need It. What should I do if I have extra wires? Online Ordering ...

Wiring Diagrams for a Ceiling Fan and Light Kit

This wiring diagram illustrates the connections for a ceiling fan and light with two switches, a speed controller for the fan and a dimmer for the lights. The source is at the switches and the input of each is spliced to the black source wire with a wire nut. From the switches, 3-wire cable runs to the ceiling outlet box.

How to Wire a Ceiling Fan

Connect black fan wire to the black ceiling wire. Connect the blue wire to the red wire. Connect white wires together. Connect green/copper wires. In the switch box: Split the incoming hot wire into a "Y" and connect it to a terminal on each switch. Connect the black wire to the screw located in swith #1. Connect the red wire to the screw in switch #2.

Ceiling Fan Parts– Hunter Fan

Ceiling Fan Parts and Accessories. Hunter fan parts like light kits, downrods, replacement shades, and even specialty bulbs can keep your fan running right. We aim to make it easy for our customers to find ceiling fan repair parts and replacement parts to get their fans up and running again.

Ceiling Fan Wiring Diagram

Looking to have an outlet be controlled by a switch? Follow my switched outlet wiring diagram to learn how. Read More. Ceiling Fan Installation Wiring. Jan 17, 18 11:46 AM. Looking for ceiling fan installation wiring? All the diagrams needed to understand and confidently install a ceiling fan. Read More
