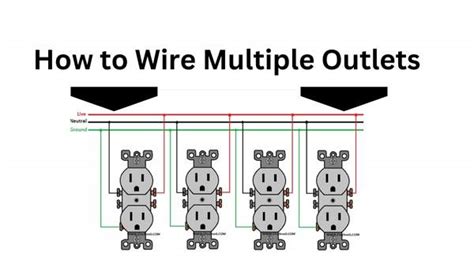

Wiring Diagrams for Multiple Receptacle Outlets Wiring Diagram for Multiple Outlets. This diagram shows the wiring for multiple receptacles in an arrangement that connects each individually to the source. All wires are spliced to a pigtail which is connected to each device separate from all the others in the row. This wiring allows for source voltage at each outlet independent of the others in the circuit.
How to Wire Multiple Outlets | HunkerAnother approach to outlet wiring is to create pigtails. You create a pigtail by twisting together multiple wires of the same color (it's very important that they're the same color) and adding a short length of spare wire of that color. Twist clockwise using pliers, then screw a wire cap onto the connection.
How to Wire an Outlet Receptacle? Socket Outlet Wiring ...In this wiring, the first and 3rd outlet hot terminals are connected to the Line 2 (Blue) and the second and last outlets hot terminals are connected to the Line 1 (Red). The neutral is connected from the main breaker to all outlets neutral terminal. Ground wire is connected to the outlets as well as shown in the fig.
How to Wire Electrical Outlets in Series | HunkerIf you wanted to ignore code and wire your outlets in series, the procedure would be the same. Connect the black wires to the brass terminals on the outlet you're wiring, connect the ground wires to the ground terminal, then twist the white wires together and cap them. Follow this procedure for all but the last outlet in the circuit.
How To Wire Multiple Receptacles If you want to help support Shannon to produce more videos like this, visit https://www.house-improvements.com/donate Shannon from https://www.house-improvem...
How to Wire an Outlet in a Series | DoItYourself.comJust to clarify, a common line with several outlets is always wired up in parallel since there wouldn't be any current flow through an outlet with something plugged into each outlet to complete the circuit, and even then, the line voltage would be divided (reduced) between each outlet, rendering the whole line inoperational.
Line or Load With GFCI Connection One is the line cable that connects to the GFCI's LINE terminals. The other cable connects to the LOAD terminals to bring power downstream to additional outlets and other devices on the circuit. As with the line connections, the hot wire of the load cable connects to the black or brass terminal on the outlet.
Wiring an Outlet in the Middle of a CircuitWhen an outlet receptacle falls in the middle of a circuit run rather than at the end, there are generally two cables in the outlet box. One cable is the incoming power source entering the box from one side, while a second cable exits the box to continue onward to "downstream" locations on the circuit.
How to Wire an Outlet and Add an Electrical Outlet | The ...Rewire the Existing Electrical Outlet Connect the wires of the new cable to the existing wires. Strip about 10 inches of plastic sheathing from the new cable to expose the black, white and copper wires. Run the new cable, with sheathing, at least two inches up inside the box, and double over the excess wires to help hold the cable in place.
WIRING RECEPTACLES IN PARALLEL HOW TO WITH SAM
