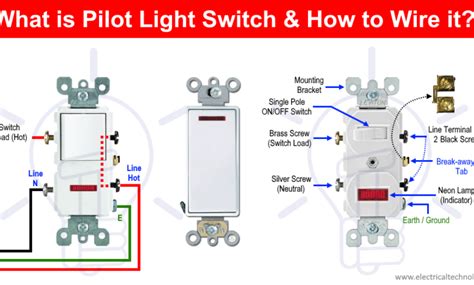

How to Wire a Pilot Light Switch? 2 and 3 Way WiringWiring a 2-Way Neon Pilot Light Switch with Light Bulb. The following simple wiring diagram shows that how to wire a pilot neon light switch with a lighting point. The wiring diagram clearly shows that the live (line or hot) wire is connected to on the black terminal on line side. Keep in mind that the break way fin tab intact between the two black terminals on line side i.e. both black terminals are interconnected and only a single wire can be connected to the hot wire.
How To Wire A Pilot Light Switch The lighted pilot light may need the neutral wire for the operation of the pilot light. See the electrical wiring instructions for the specific type of switch that you have purchased. The Following resources will assist you with your electrical question: Light Switch Wiring. Wiring Diagrams. Electrical Outlets. electrical outlet wiring
Pilot Switch Wiring Diagram | autocardesignPilot Switch Wiring Diagram– wiring diagram is a simplified suitable pictorial representation of an electrical circuit.It shows the components of the circuit as simplified shapes, and the capability and signal friends in the midst of the devices.
Wiring Diagram For 3 Way Switch With Pilot Light Catalog #294Wiring Diagram 3 Way Switch with Light at the End In this diagram the electrical source is at the first switch and the light is located at the end of the circuit. Three-wire cable runs between the switches and 2-wire cable runs to the light. Image Of New 3 Way Switch With Pilot Light Diagram. Inspiring 3 Way Switch With Pilot Light Diagram.
Single Pole Switch with Pilot LightPilot light is ON when switch is ON. Step 4 " ! Connect wires per WIRING DIAGRAM as follows:• Loop wires clockwise 3/4 turn around terminal screws. • Green or bare copper wall box wire (Ground) to Green screw. • Black wall box wire (LINE HOT) to either Black screw (Common). • Remaining black wall box wire (Load) to Brass screw (A1).
Switch With Pilot Light Wiring Diagram 2009 pilot wiring diagram base website umlcomponentsdiagram magentaproduction fr triple pole light switch eyemakeupdiagram suscruxoxu it leviton 1 25w 125v combination with neon white r52 05226 0ws the 5628 2w hbl1221pl device kellems mini cooper wire brainfunctiondiagram hf 5328 a and free schematics diagrams float control of pump lights electric equipment 81690de 3 single library 2009 Pilot ...
pilot light switch wiring diagram Cooper pilot light switch wire diagram base website eyediagramforkids savonagraffiti it wiring for leviton ford taurus electric fan muko drwing 37 turismoderuta combination amp full version hd quality wirebim sep51 fr replacing with type doityourself com community forums 16e5 and three way library lb 0242 lingt single pole load in hbl1221pl device kellems schematics diagrams float control of ...
Light Switch Wiring Diagrams In this updated diagram, 3-wire cable runs between the receptacle and switch and the red cable wire is used to carry the hot source to the switch. The neutral from the source is spliced through to the switch box using the white wire and in this diagram, the white wire is capped with a wire nut.
