How To Wire a 3Figure C: 3-Way Switch Wire Diagram — Power to Light Switch with Fixture Between Switches The incoming hot wire is connected to the right switch's common terminal. Two lengths of four-wire with ground cable, joined at the fixture box, link the right and left switch traveler terminals...
3In the above 3-way switch wiring diagram at each switch the black wire gets connected to the copper or black screw. In the ceiling light fixture electrical box, one black wire from a 3-way switch gets connected to the black LOAD wire on the light fixture.
How to Wire a 3 Way Switch Once your boxes are in place, you can start the process of installing and wiring the switches themselves. Refer to the above 3-way switch diagram. Step 3: Run New Cable (Romex) Between the 3- Way Switches. Regardless of what 3-way switch wiring diagram, you’re following, you’ll need to use a 3-wire cable to connect the two 3-way light switches. So what you should see if you have correct 3-wire electrical cable (Romex) is a black (power) white (neutral) and now a 3rd (Red) wire.

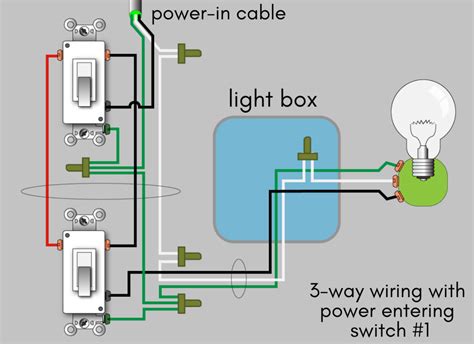

3Wiring diagram for a 3-way switch, one of the many wiring diagrams showing different methods of wiring a three way switch circuit. This electrical wiring diagram shows power into light switch Box #1 – wire to light from switch box #1, and from switch box #1 to three-way light switch box #2. Note that in this case, a larger than normal device box is required at switch #1 location, due to box fill calculations (most regular size boxes will only accommodate five wires; in this situation, you ...
Wiring Diagrams for 3The Key to Wiring 3-Way Switches The Power Feed and the Switch Leg leading to the fixture (s) typically, one at each switch location, are attached to the screw terminal found at one end of the switch by itself. This terminal is usually identified by a darker colored screw.
Wiring a 3Red wire = Power or Hot wire Black wire = Power or Hot wire White wire = Neutral Bare copper = Ground When wiring a 3-way switch circuit, all we want to do is to control the black wire (hot wire) to turn on and off the load from 2 different locations.
