Switched Outlet Wiring Diagrams | Mr. ElectricianFrom there a 3 conductor cable is installed to a switched electrical receptacle outlet. A two conductor cable is installed from the switched outlet to feed an outlet that is live at all times. A two conductor cable is run from the the switch box to another duplex receptacle outlet that is also live at all times.

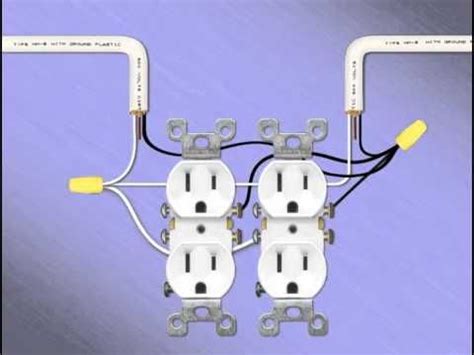

Wiring Diagrams for Multiple Receptacle Outlets Wiring Diagram for Dual Outlets. Here 3-wire cable is run from a double-pole circuit breaker providing an independent 120 volts to two sets of multiple outlets. The neutral wire from the circuit is shared by both sets. This wiring is commonly used in a 20 amp kitchen circuit where two appliance feeds are needed, such as for a refrigerator and a microwave in the same location.
3 Way and 4 Way Wiring Diagrams with Multiple Lights A 3-wire cable runs from L1 to L2 and 2-wire cable runs from there to the first switch. A 3-wire cable runs between SW1 and SW2. The source hot is spliced to the black wire running between the lights and at the last light it is spliced to the black wire running through to the common on SW1, it does not connect to the light fixtures.
Wiring Diagrams and Schematics for 3 Way SwitchesHow to Wire 3 Way Switches – Power to the First Switch Electrical Question: I’m looking for a schematic wiring diagram on how to do a 3 way switch with a – switch, light, light, switch with power coming into the first switch. I have the understanding of a normal 3 way switch, but the extra light has thrown me.
Duplex Switches A duplex switch contains two switches on one body. They come in single pole and 3-way. Two of the common terminals are connected together with a removable metal tab. These terminals are usually connected to line voltage and can be black or bronze color depending on the manufacturer. This tab is removed to isolate the tabs from each other.
Wiring Diagrams for Electrical Receptacle Outlets Wiring Diagram for a 20-Amp 120-Volt Duplex Receptacle. A 20 amp, 120v duplex receptacle outlet like this should be installed in a circuit using 12 awg cable and a 20 amp circuit breaker. These receptacles are usually found in kitchen wall outlets where two branch circuits are needed to serve small appliances and a refrigerator separately.
3Below is a simple 3-way schematic that can be applied to all three-way electrical light switch connections. This is only a wiring schematic and not the actual wiring method used for 3-way switch installations. 3-way switch schematic wiring diagram. Two very old three-way switches. Two very old three-way switches are depicted in the photo above.
33-Way Switch Wiring Diagram Line to Light FixtureLine voltage enters the light fixture outlet box. No longer allowed after 2011 NEC (if no neutral wire in switch boxes) 3-Way Switch Wiring Diagram Light Fixture Between SwitchesLine voltage enters the first 3-way switch outlet box, light fixture is located between switch boxes.No longer allowed after 2011 NEC (if no neutral wire in switch boxes)
Wiring Diagrams for GFCI Outlets Wiring GFCI Receptacles with a Protected Outlet. This gfci wiring provides protection to a duplex receptacle outlet at the end of the series. By connecting the load terminals on the last gfci, the wall outlet at the end is protected and can be used just as if it were one of the gfci receptacles.
3 Way Switch Wiring Diagram Take a closer look at a 3 way switch wiring diagram. Pick the diagram that is most like the scenario you are in and see if you can wire your switch! This might seem intimidating, but it does not have to be. With these diagrams below it will take the guess work out of wiring.
