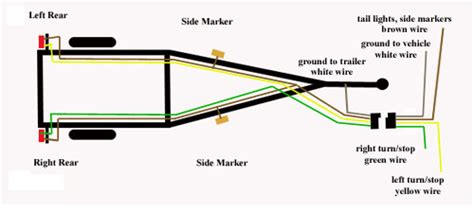

Wiring A Boat Trailer For Brakes And LightsBelow is a simple wire diagram for a standard four wire light harness. The white wire (ground) on the following boat trailer wiring diagram is drawn in grey so that you can see it against the white background. The standard four prong connector to connect the trailer to the tow vehicle is perfect for a simple trailer light system.
5 Pin Boat Trailer Wiring Diagram | Free Wiring DiagramJanuary 31, 2019 by Larry A. Wellborn Assortment of 5 pin boat trailer wiring diagram. A wiring diagram is a simplified traditional photographic representation of an electrical circuit. It reveals the components of the circuit as streamlined shapes, and also the power and also signal links in between the gadgets.
Trailer Wiring Diagram | TackleReviewerBoat trailer color wiring diagram. Use this as a reference when working on your boat trailer wiring. Includes 5 and 7 wire plug and trailer wiring schematics. Branson Werner. When not working his heart out on websites, e-commerce, and programming, Branson like to enjoy time on the lake. His best times are spent with friends trophy bass hunting ...
Trailer Wiring Diagram For 4 Way, 5 Way, 6 Way and 7 Way ...3/4 inch by 1 inch 6 way rectangle connectors right turn signal (green), left turn signal (yellow), taillight (brown), ground (white). The red and blue wire can be used for brake control or auxiliary. Use on a small motorcycle trailer, snowmobile trailer or utility trailer. Can also be used as custom wiring on trailers with 3 light/wire systems. See "Tow Vehicle Taillight Wiring" below.
Trailer Wiring Diagram – Lights, Brakes, Routing, Wires ...Typical Trailer Wiring Diagram and Schematic. These 2 wire diagrams fit the needs of most trailers. The image above shows a single axle trailer, and the next image shows wiring for Tandem Axles. Only the (blue) brake and (white) ground wires are different. Expand the same for additional axles. Use only the needed wires, and ignore the others.
