How to Wire a Ceiling Fan Wiring ceiling fans can seem complicated, but the task really just depends on the type of fan you are installing and how you want it to operate. Whether you are looking to wire a ceiling fan with lights to one power switch, or add a fan in a room without a switch source, this guide will teach you how to wire a ceiling fan using four common scenarios and the best wiring methods.
Wiring Two Ceiling Fans One Switch Diagram | Shelly LightingTrying to connect 2 ceiling fans 1 switch electrical diy how to wire a ceiling fan the how to wire a ceiling fan the installing ceiling fan switches. Whats people lookup in this blog: Wiring Two Ceiling Fans One Switch Diagram
How to Wire Two Ceiling Fans on the Same Circuit | Home ...Connecting two ceiling fans to the same branch circuit is an easy project even for the beginner. Like is the case with many electrical projects that require running new electrical wiring, the most ...
Ceiling Fan Wiring Diagram (Two Switches)Ceiling Fan Wiring Diagram (Two Switches) - (pdf, 519kb) Back to Wiring Diagrams Home. Click the icons below to get our NEC ® compliant Electrical Calc Elite or Electric Toolkit, available for Android and iOS. The Electrical Calc Elite is designed to solve many of your common code-based electrical calculations like wire sizes, voltage drop ...
Ceiling Fan Wiring Schematics & Diagrams A question we often get asked is, where can I find a wiring schematic or wiring diagram for my ceiling fan? Whether it be a Hampton Bay, Hunter or another brand of ceiling fan, many fans have the same setup in terms of installation. With the below wiring diagrams, you can install 90% of ceiling fans, no matter the make or model.
Ceiling Fan Wiring Diagram Ceiling Fan Wiring Diagram. Take a closer look at a ceiling fan wiring diagram. Pick the diagram that is most like the scenario you are in and see if you can wire up your fan! This might seem intimidating, but it does not have to be. With these diagrams below it will take the guess work out.

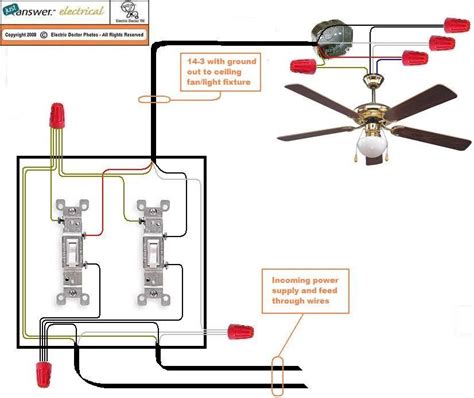

Wiring Diagrams for a Ceiling Fan and Light Kit This wiring diagram illustrates the connections for a ceiling fan and light with two switches, a speed controller for the fan and a dimmer for the lights. The source is at the switches and the input of each is spliced to the black source wire with a wire nut. From the switches, 3-wire cable runs to the ceiling outlet box.
Ceiling Fan Wiring Diagram #2 How can I wire a 3-way switch to a ceiling fan with power to the light and separate switch to fan. Dave's Reply: Tim, the power must be separated at the power source before the switches, then one switch will be wired for each separate function.
Red wire ceiling fan wiringSimple fan with 2 wire; Fan with 3 wires (as seen from fan side with capacitor) 4 wire fan with inbuilt LED light; Considering all the above facts, we have created a ceiling fan wiring diagram guide for ease of installation process. Based on countries and their wiring code there are two major classifications. Table of wiring code in different ...
Ceiling Fan Switch Wiring Ceiling Fan Switch Wiring Diagram 2 Line voltage enters the switch outlet box and the line wire connects to each switch. Switched lines and neutral connect to a 3-wire cable that travels to the light/fan outlet box in the ceiling. The fan control switch usually connects to the black wire and the light kit switch to the red wire of the 3-way cable.
